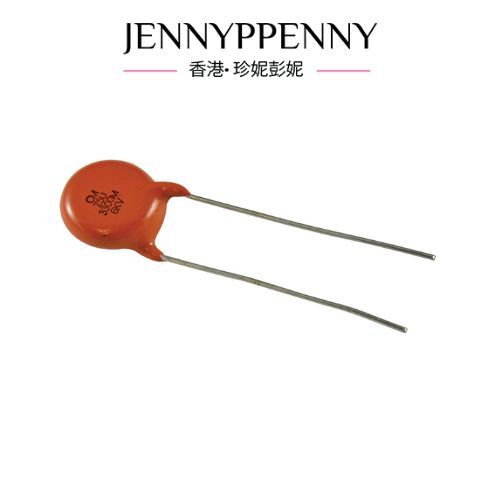

564R60GAD33 High-Voltage Ceramic Disc Capacitor

564R60GAD33 High-Voltage Ceramic Disc Capacitor – Industrial Power Applications

The 564R60GAD33 is a robust high-voltage ceramic disc capacitor engineered for demanding industrial power supply applications, voltage conditioning circuits, and energy storage in high-temperature environments. This rugged capacitor delivers reliable AC voltage handling and transient suppression, enabling stable operation in power conversion systems, motor controllers, and industrial equipment requiring compact disc-style components.

Key B2B Features:

• High-Voltage Rating: Accommodates industrial AC/DC power supply specifications without derating
• Ceramic Dielectric: Stable capacitance across extended temperature ranges and frequency variations
• Compact Disc Form Factor: Space-efficient design for retrofit applications and board-constrained systems
• Excellent Frequency Response: Suitable for both AC and DC filtering applications
• Extended Operating Temperature: Reliable performance across -40°C to +125°C industrial specifications
• Low ESR Characteristics: Minimizes power loss and thermal generation in high-frequency circuits

Primary Applications:

• Industrial power supply circuits and rectification
• Motor controller and drive systems
• Voltage conditioning and transient suppression
• High-voltage DC filtering and smoothing
• Industrial heating and furnace equipment
• Telecommunications power modules
• UPS and backup power systems
• Heavy-duty industrial equipment

Technical Advantages:

The 564R60GAD33 eliminates bulky film capacitor requirements, reducing PCB footprint while maintaining reliability in electrically harsh industrial environments. Its ceramic construction provides superior vibration resistance compared to electrolytic alternatives.

Procurement: Order 564R60GAD33 high-voltage ceramic disc capacitors from authorized distributors. Access detailed specifications, voltage derating curves, and application guidance for optimal circuit performance.
