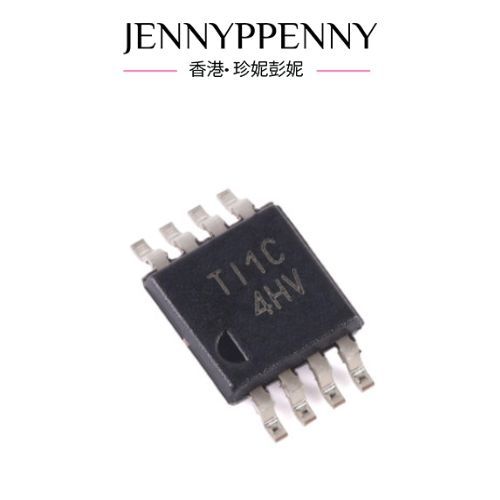

OPA2197IDGKR Low-Noise Rail-to-Rail Op-Amp

OPA2197IDGKR Low-Noise Rail-to-Rail Op-Amp – Precision Signal Conditioning

The OPA2197IDGKR is a high-performance dual-channel operational amplifier from Texas Instruments engineered for precision signal conditioning, low-level sensor amplification, and high-fidelity data acquisition applications. This exceptional op-amp delivers ultra-low input offset voltage and noise characteristics, enabling accurate processing of weak analog signals in demanding measurement systems, instrumentation, and industrial control platforms.

Key B2B Features:

• Low Input Offset Voltage: Minimizes DC drift and zero-drift errors in precision measurement circuits
• Ultra-Low Noise: Exceptional noise performance preserves signal integrity in sensitive applications
• Rail-to-Rail Input/Output: Maximizes signal dynamic range and eliminates external biasing requirements
• High Gain Accuracy: Precise gain setting enables accurate signal conditioning without calibration
• Low Power Consumption: Reduces thermal dissipation in battery-powered and space-constrained systems
• Extended Temperature Range: Industrial-grade stability across -40°C to +125°C specifications

Primary Applications:

• High-resolution data acquisition and measurement systems
• Medical diagnostic and patient monitoring equipment
• Precision industrial process control and instrumentation
• Sensor signal conditioning and interface circuits
• Strain gauge and load cell amplification
• Temperature and pressure measurement systems
• Audio and acoustic signal processing
• Laboratory scientific instrumentation

Technical Advantages:

The OPA2197IDGKR eliminates external offset nulling circuits through inherent low offset voltage specifications, reducing PCB complexity and component count. Its rail-to-rail capabilities support single-supply operation, simplifying power distribution in portable and embedded systems.

Order & Support: Source OPA2197IDGKR op-amps from authorized TI distributors. Access application notes, SPICE models, and evaluation boards for rapid signal conditioning circuit development.
